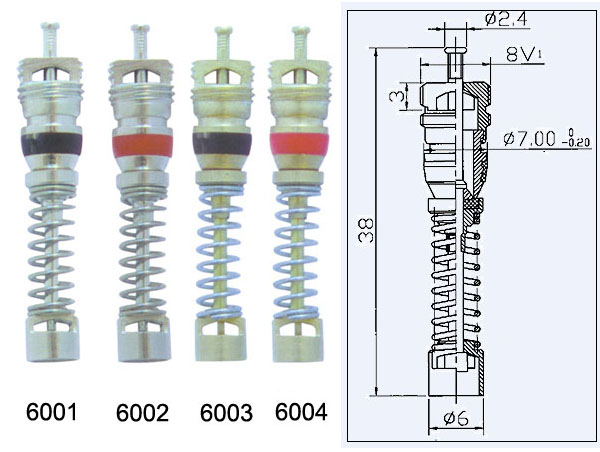

Tire Valve & Accessories>>Valve Cores-600X SERIES

EQUIPMENT DESCRIPTION ：

TR NO.	Feature	Color of O-ring	Working Pressure Range kgf/cm²(ibf/in²)	Working Temperature	Suggested Installing Torque(kgf.cm)
6001	Standard Type	Black	0~15 (0~212)	-40~+100℃ (-40~+212°F)	4
6002	High/Low Temperature Resistant	Red	0~15 (0~212)	-54~+150℃ (-65~+302°F)	4
6003	Standard Type	Black	0~15 (0~212)	-40~+100℃ (-40~+212°F)	4
6004	High/Low Temperature Resistant	Red	0~15 (0~212)	-54~+150℃ (-65~+302°F)	4
